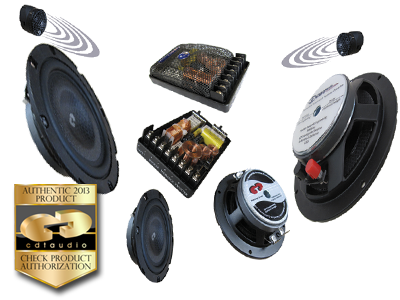

MX-Designs
MX-364HC

Ultra Slim 3-way component system

The MX  Designs Ultra slim honey cone matrix Mid-woofers are designed and built for the unique demands of the car audio environment. They are built to deliver the truest, in-car sound possible, the most accurate and natural performance.

The cone of MX-HD-364HC drivers is made of a honey cone matrix. Special designed cone and magnet structure makes in combo the slimmest high-end 6.25” mid-woofer in the market with of 1.5” mounting depth 4” midrange w/1.25”  mounting depth. Producing unrivaled high-end sound that is engineered just for your car to make the most perfect blend with any CDT tweeter and crossover.

MX-364HC

MX-364HC
Ultra Slim 3-way component system

Technical specs and contents
  • 1 pr 6.25” ultra slim woofer
  • 1 pr 4” ultra slim mid-woofer
  • Frequency response 75Hz-5.000Hz
  • Power handling: 180watt (230Watt Pk) HPF 100Hz
  • Impedance 4 Ohm
  • Sensitivity: 86.4 dB
  • Mounting depth 6.25” 1.5”
  • Depth 4” 1.25”
  • Cut out diameter: 5.19”
  • Cast frame: OD 6.25”
  • Cone: Honey cone matrix
  • Magnet weight 20 Oz
  • Cone surround: rubber
  • Impedance: 4Ohm
  • Voice coil: 1.0” (25.4mm) Fs: 73.5Hz



<< Back to MX-Designs 3-Way Systems

Promo Price $499.99/package

Reg. $599.99/pr
Price (incl. warranty)
Quantity:
