MX-363

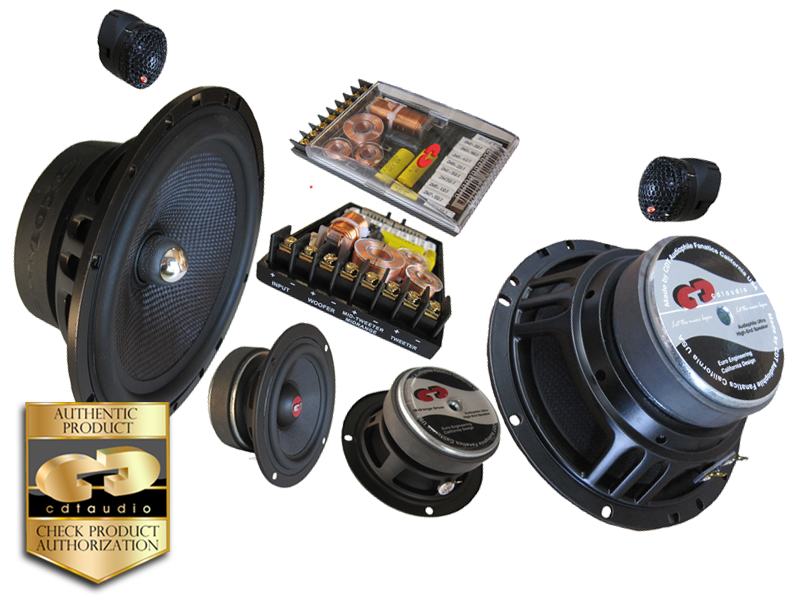

The MX-363 6.5” cast woofer and 3” midrange component system is designed and built for the unique demands of the car audio environment.

Built to deliver the truest, in-car sound possible, the most accurate and natural performance ever-the type of performance that has earned our design team countless awards and unanimous praise from around the world. Smooth and accurate highs.

The 3” midrange speaker along with the 1” image tweeters makes this system the easiest to install 3-way system in the market. The WS-100i 1” imaging soft dome tweeters combine to deliver superb detail and incredible clarity. Install with literally zero holes to drill.

The 6.5” cast carbon reinforced woofer is smooth with a fast deep clean sound into the lowest bass frequencies. Combined with the superior MX-1000SX “Transient Optimized” 24dB crossover makes this system a sound performing 6X9” component system audiophile listeners praise over and over.

MX-362F



MX-363

Technical specs and contents

  • 1 pr 6,5” cast carbon reinforced woofer
  • 1 pr 3” midrange
  • 1 pr 1.1” silk dome image tweeter
  • 1 pr MX-1000SX “Transient Optimized” 24dB xover
  • Frequency response: 65Hz-20,000Hz
  • Power handling: 170WRMS HPF 100Hz
  • Impedance: 4 Ohm
  • Sensitivity: 91.6dB
  • Dimensions: 6.5” mid-woofer
  • Mounting depth: 2.75”
  • Cone: carbon reinforced cone
  • Magnet weight 20 Oz
  • Cone surround Butyl rubber
  • Voice coil: 1.5”
  • Dimensions: 3” midrange outer diameter: 3.7” (94mm), Mounting depth: 1.69” (43mm), Cutout diameter: 2.9”(73.7mm)





<< Back to MX-Designs 3-Way Systems


Price (incl. warranty)
Quantity:

Promo Price: $239.99

Reg. $499.99
