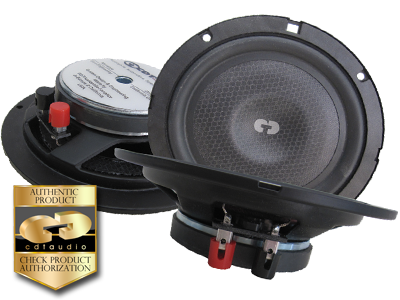

MX-6HC 6.25” ultra slim mid-woofer

MX-6HC Ultra Slim design (1.5” depth)
The cone of MX-6HC midrange is made of a honey cone matrix. Specially designed cone and magnet structure makes in combo the slimmest high-end 6.25” mid-woofer in the market with of 1.5” mounting depth Producing unrivaled midrange that is engineered just for your car to make the most perfect blend with any CDT tweeter and crossover.

  MX-4HC & MX-6HC

MX-6HC

MX-6HC
Technical specs and contents
  • 1 pr 6.25” super slim mid-woofer
  • Frequency response 75Hz-5.000Hz
  • Power handling: 120watt (180Watt Pk)
  • Power handling: HPF 120Hz 120Watt
  • RMS Impedance 4 Ohm
  • Sensitivity: 86.4 dB
  • Mounting depth: 1.5”
  • Cut out diameter: 5.19”
  • Cast frame: OD 6.25”
  • Cone: Honey cone matrix
  • Magnet weight 20 Oz
  • Cone surround: rubber
  • Impedance: 4Ohm
  • Voice coil: 1.0” (25.4mm)
  • Fs: 73.5Hz

<< Back to MX-Designs Woofers Promo Price $139.99/pr

Reg. 159.99
Price (incl. warranty)
