MX-2

2” Hybrid Mid/Tweeter driver all-in-one.

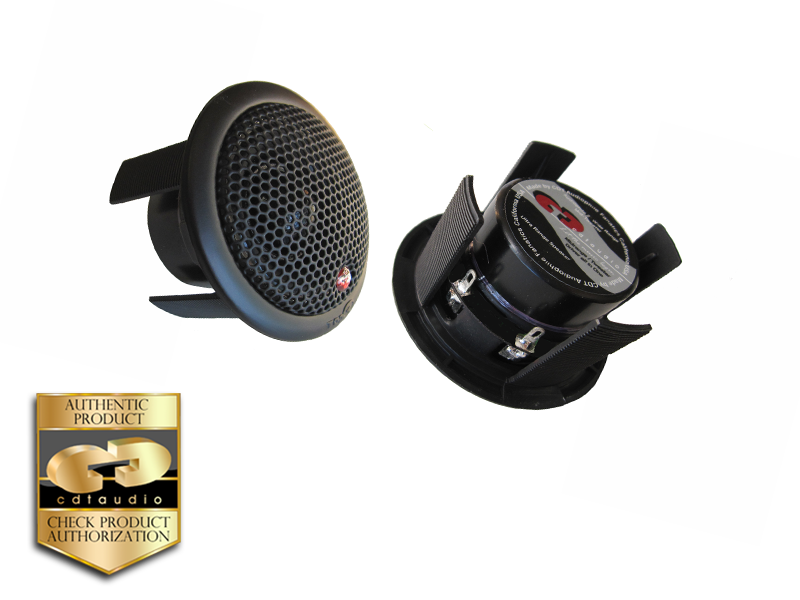

1 pr MX-2 Wide range mid-tweeter drivers

MX-Designs introduces a 2” hybrid mid/tweeter incorporating a new parametric blend in an affordable package, one that puts sweet midrange with incredible detail in your vehicle locations simply and easily. Suitable for enclosed or free-air use in your vehicle, these hybrid drivers provide full and rich extended midrange down to 150Hz up to a tweeter top end frequency of 20,000Hz. If your listening tastes are for superior midrange detail with a sweet and smooth upper tweeter sound, these drivers provide optimum extended range, wider frequency range than any other driver in the market.

This new hybrid marvel is a unique 2” mid/tweeter, you get both mid and tweeter all in one driver (more and wider dispersion at the highest frequencies than any 25mm dome tweeter.)

The MX-Designs 2” hybrid is a unique 2” mid-tweeter speaker that can do jobs nothing else will touch. This driver is more extended and has a special hand coated cone and dust cap for assurance it will reach frequency response up around 20kHz. The new designed MX-2 2” hybrid performs better power response (more dispersion at the highest frequencies than any 25mm dome tweeters.) It can, however, reach 150 Hz at the low end, although using it this low would be a power-handling problem. We recommend using it from 250Hz and up. Designed and built to deliver accurate and natural clean sound never heard before from a 2” mid-tweeter driver.

MX-1
MX-2
Technical specs and contents
  • 1 pr 2” hybrid mid/tweeter drivers
  • Black injection molded frame
  • Diameter: 2” (52mm)
  • Frequency response: 200Hz-20.000Hz
  • Sensitivity: 86.dB
  • Power handling w/xover: 90W-140Watts HP
  • Magnet: Neodymium
  • Voice coil: 1.0” (25mm)
  • Surround: Rubber
  • Frame: Injection molded
  • Frame OD 2.65” (67.5mm)
  • Mounting depth:1.26” (32mm)
  • Cone: Fabric/paper carbon reinforced
  • Impedance: 4 Ohms

<< Back to MX-Designs Tweeters

<< Back to MX-Designs Woofers




Price (incl. warranty)
Quantity:

Special Promo
Price this month:
$89.99


Reg. $149.99
