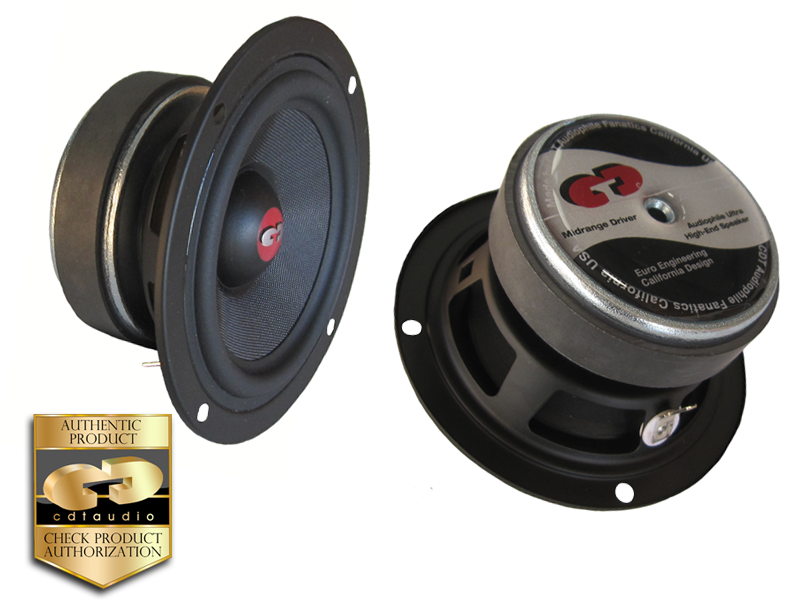

MX-3F 3” cast mid-woofer

The devil is in the details and so is the magic.

The cone of MX-3F midrange drivers is made of a light, yet rigid, mixed fiber fiberglass. Producing unrivaled midrange that is engineered just for your car to make the most perfect blend with any CDT tweeter and crossover.  Small size midrange for the true audiophile listener.

MX-3F

MX-3F
Technical specs and contents
  • 1 pr 3” mid-woofer
  • Frequency response 90Hz-11.000Hz
  • Power handling: 100watt (150Watt Pk) HPF-250Hz
  • Impedance 4 Ohm
  • Sensitivity: 85.9dB
  • Mounting depth: 1.69” (43mm)
  • Cut out diameter: 2.90” (73.7mm)
  • Frame: OD 3.7” (94mm)
  • Cone:Mix fiber glass
  • Magnet weight 7.2 Oz
  • Cone surround rubber
  • Voice coil: 1.0” (26mm)
  • Fs: 110Hz
<< Back to MX-Designs Woofers Price $129.99
Price (incl. warranty)
Quantity:
